    Harmonics & Harmonic Load Flow Calculation Using DIgSILENT PowerFactory

    Harmonics is one of the most important subject in power system field.
    In addition, protection engineers should be able to analyse harmonics to identify the sources of harmonics and avoid the effects of harmonics on the power network equipments.

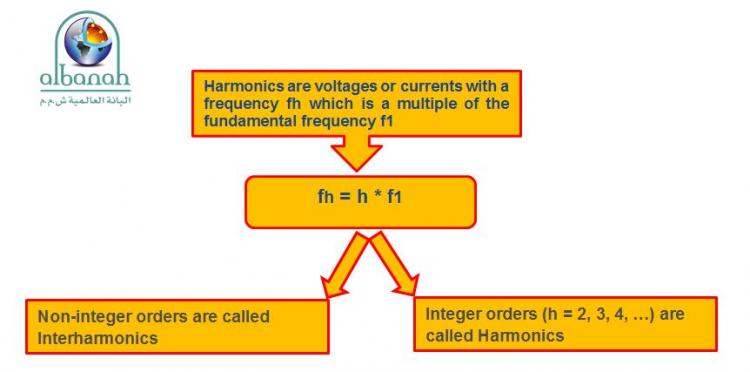

    The definition of harmonic is described as follow:



    Click image for larger version Name: harmonics defination.jpg Views: 1 Size: 29.2 KB ID: 725

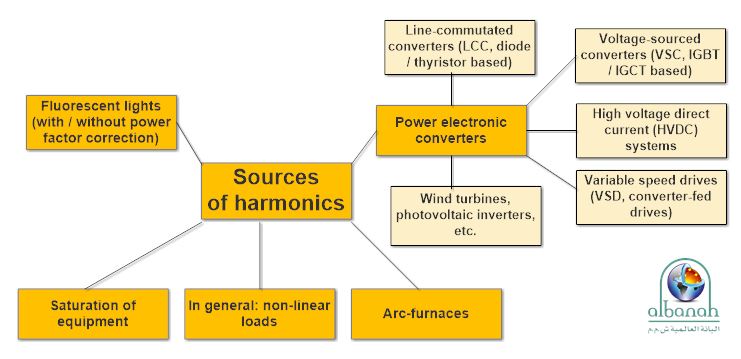

    Moreover, the sources of harmonics are categorized as follow:


    Click image for larger version Name: sources of harmonics.jpg Views: 1 Size: 42.3 KB ID: 724
    Tags: None
    • Likes 2
  • #2
    Re: Harmonics & Harmonic Load Flow Calculation Using DIgSILENT PowerFactory

    Impacts of harmonics:
    • Harmonic currents cause additional loading / heating (esp. of transformers,motors, neutral conductors)
    • Harmonic voltages cause additional loading of capacitor banks and filters
    • Increase in peak voltage
    • Vibration of rotating machines
    • Audible Noise
    • Displacement of zero crossings, multiple zero crossings :faulty operation of some controllers
    • Interference in neighbouring telecommunication systems
    • Likes 1

    Comment

    • #3
      Re: Harmonics & Harmonic Load Flow Calculation Using DIgSILENT PowerFactory

      Harmonic Load Flow Calculation

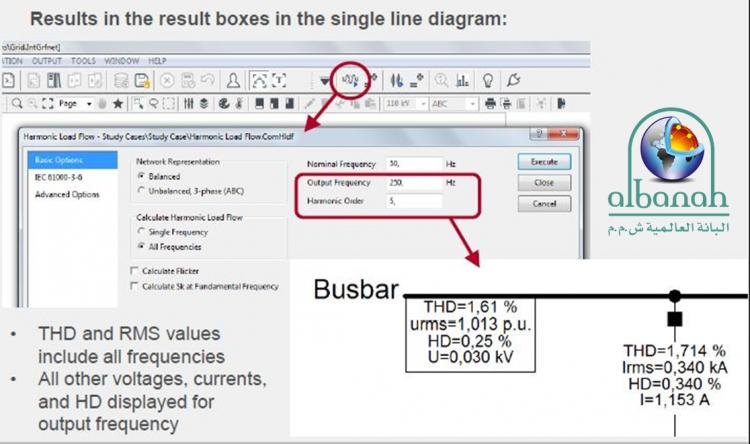

      DIgSILENT PowerFactory software provides harmonic load flow calculation as shown:



      Click image for larger version Name: last updat of HC.jpg Views: 1 Size: 50.7 KB ID: 575
      Last edited by ; 05-01-2017, 11:05 AM.
      • Likes 1

      Comment

      • #4
        Re: Harmonics & Harmonic Load Flow Calculation Using DIgSILENT PowerFactory

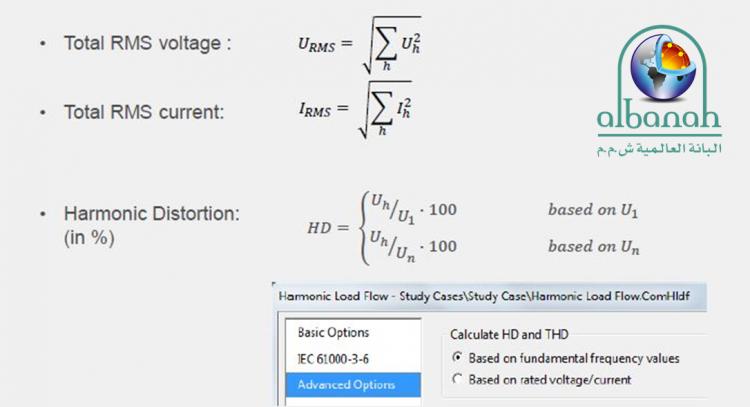

        Harmonic Distortion:


        Click image for larger version Name: last updat of HD.jpg Views: 1 Size: 27.7 KB ID: 576

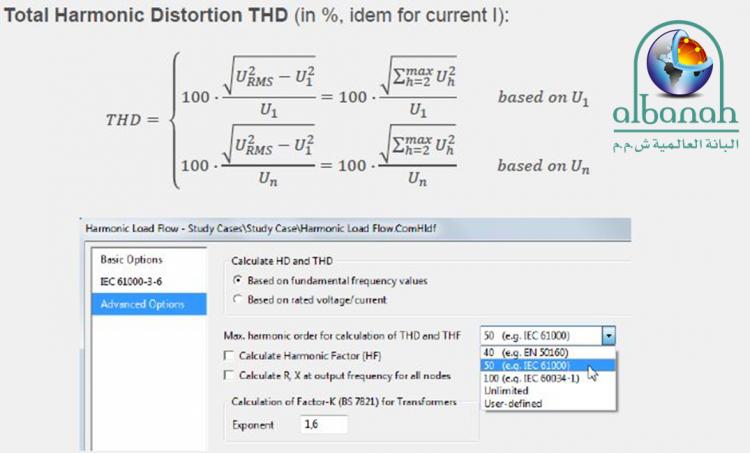

        Total Harmonic Distortion THD:

        Click image for larger version Name: last updat of THD.jpg Views: 1 Size: 37.0 KB ID: 577
        Last edited by ; 05-01-2017, 11:07 AM.
        • Likes 1

        Comment

        • #5
          Re: Harmonics & Harmonic Load Flow Calculation Using DIgSILENT PowerFactory

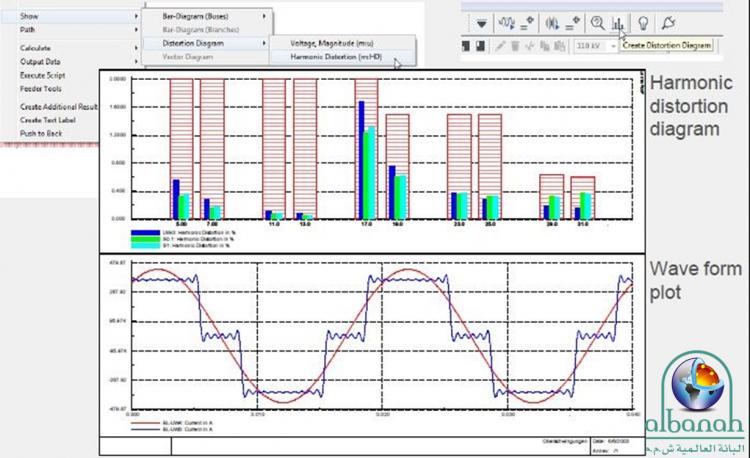

          Example of harmonic distortion diagram and wave form plot:


          Click image for larger version Name: last updat of WF.png.jpg Views: 1 Size: 60.4 KB ID: 578
          Last edited by ; 05-01-2017, 11:10 AM.
          • Likes 2

          Comment

          • #6
            Re: Harmonics & Harmonic Load Flow Calculation Using DIgSILENT PowerFactory

            Thank you
            very useful topic
            but some details are not clear
            • Likes 1

            Comment

            • Admin
              #6.1
              Admin commented
              24-07-2021, 12:58 AM
              Editing a comment
              Can you elaborate more on details that are not clear to you?
          • #7
            You can follow the procedure to simulate and compare measurements with simulation in PowerFactory
            • Likes 1

            Comment

            • #8
              Can I make comparison with flicker meter measurements?

              Comment

              • Admin
                #8.1
                Admin commented
                28-07-2021, 03:24 PM
                Editing a comment
                Yes you can.
                If you have a valid license, please raise support ticket should you need any assistance.
